Base Strap Hose Clamp Ball 1" – 2.1"
B SIZE - 1" Ball (Phones, Action Cameras, Light Duty Tablets)
FEATURES
- Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Weight:
0.28 lbs.
-
PRODUCT INFORMATION
OVERVIEW

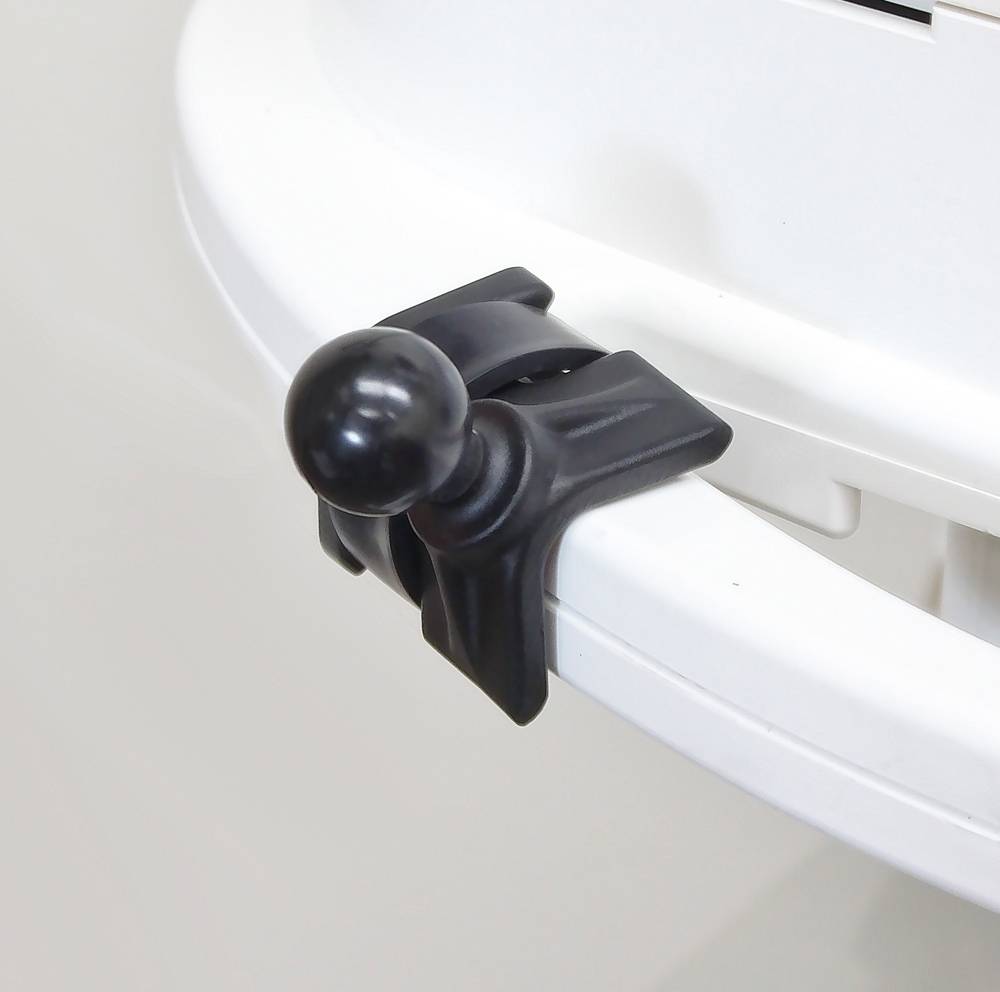

The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base, and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke."
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber StripCLAMP RANGE
1" - 2.1" diameterBALL/SOCKET SIZE
B Size (1")WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lbMATERIALS
Marine-grade aluminumPACKAGING TYPE
Poly BagWEIGHT
0.28 lbs.
