Yoke Mount iPad 1-4 with Case, Tab-Tite

  • SKU: RAM-B-121-TAB3U
  • Article code: RAM-B-121-TAB3U
  • Out of stock

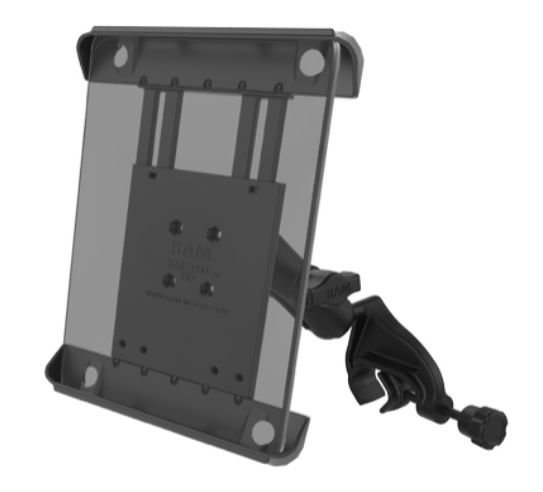

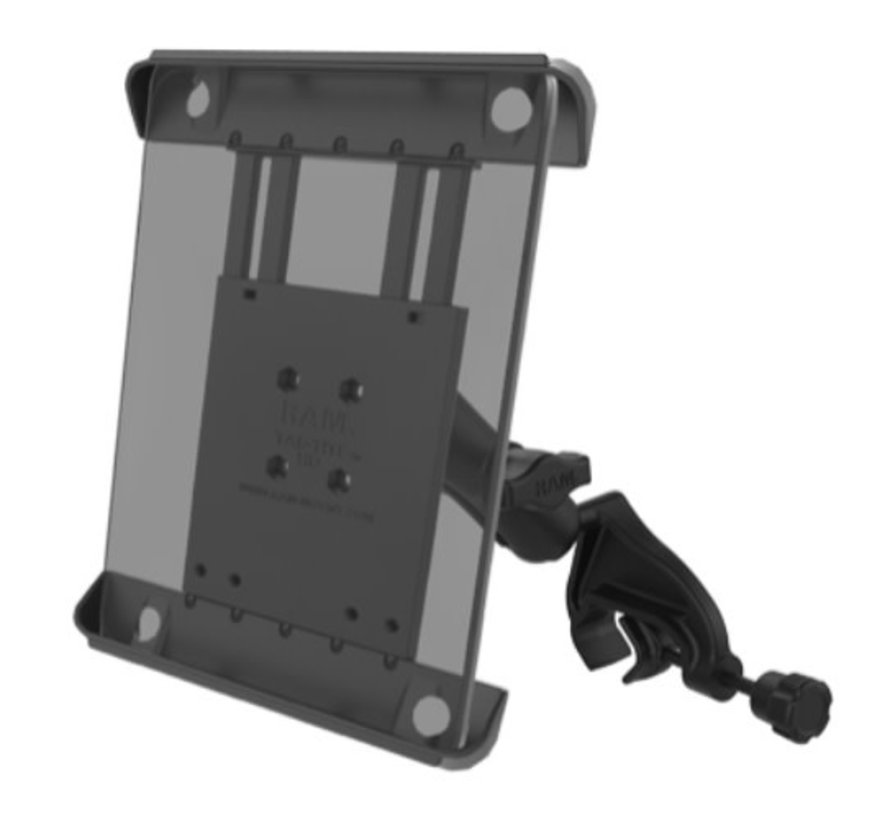

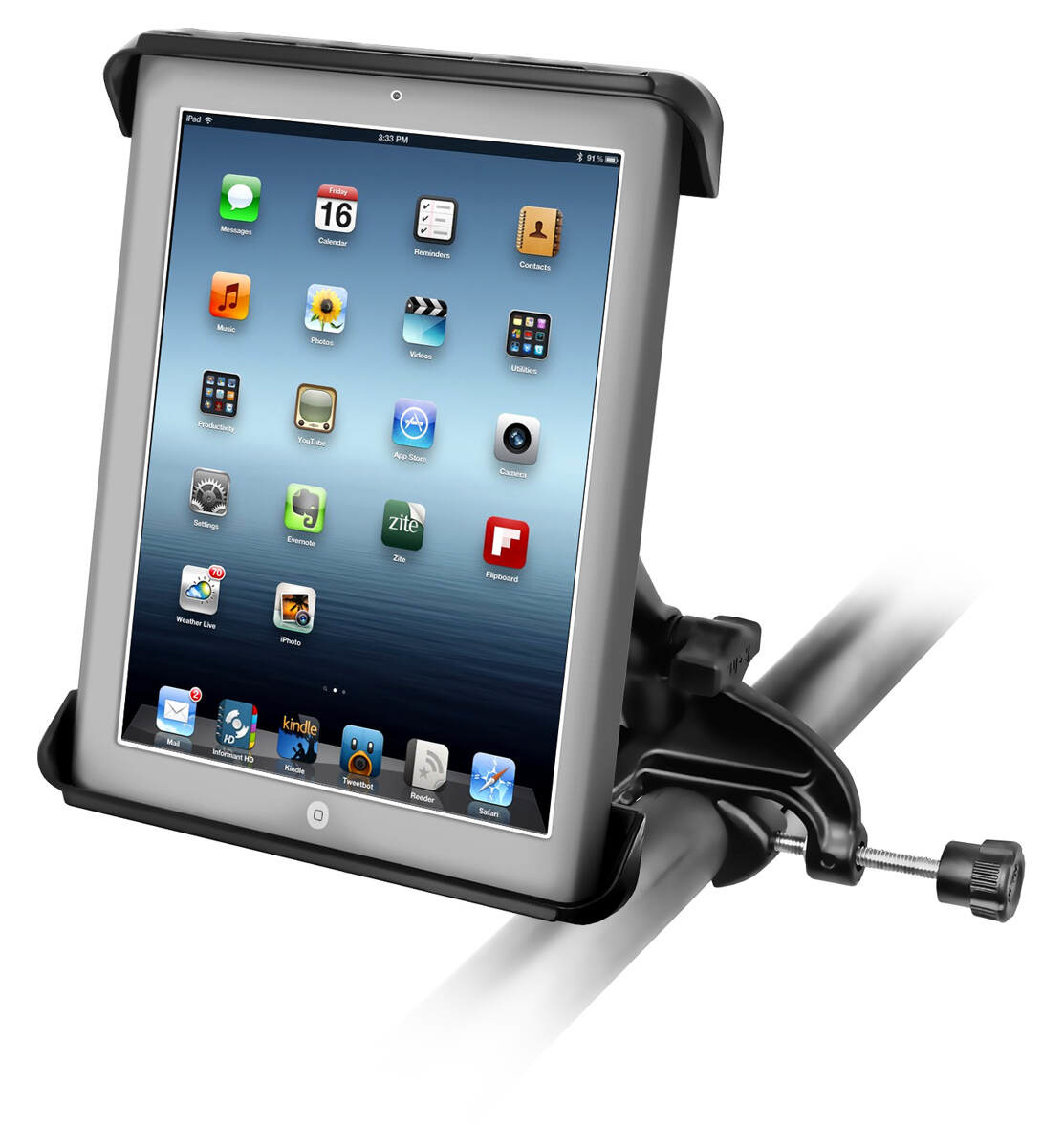

The RAM-B-121-TAB3U consists of a yoke clamp base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle.

C$ 81.99

Add to wishlist

Product description

Yoke Mount iPad 1-4 with Case, Tab-Tite

FEATURES

  • Yoke clamp base fits rails from .625" to 1.25" in diameter
  • Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

PRODUCT INFORMATION

OVERVIEW

The RAM-B-121-TAB3U consists of a yoke clamp base, double socket arm, round base adapter and Tab-Tite universal clamping cradle. The clamp base will accommodate rails in diameter from 0.625" to 1.25". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

CLAMP RANGE

.625" - 1.25"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.3 lbs.


COMPONENTS

RAM-HOL-TAB3U

RAM-B-121-202U



  • COMPATIBILITY

    COMPATIBLE DEVICES

    • Apple
    • iPad (1st Generation)
    • iPad (2nd Generation)
    • iPad (3rd Generation)
    • iPad (4th Generation)
    • iPad Air 4
    • iPad Pro 11"
    • iPad Pro 11" (2020)
    • ASUS
    • MeMO Pad FHD 10
    • Transformer Pad
    • Dell
    • Venue 10 7000
    • Venue 11 Pro 7000
    • HP
    • ElitePad 900
    • ElitePad 900 G1
    • Pro 610
    • Lenovo
    • S6000
    • Tab A10
    • ThinkPad 10
    • Yoga Tablet 10
    • Yoga Tablet 10 HD+
    • Yoga Tablet 2 (10 inch)
