Base Yoke Clamp Double Ball With Diamond Plate

Base Yoke Clamp Double Ball With Diamond Plate

 B SIZE  MEDIUM ARM

• PRODUCT INFORMATION

  OVERVIEW

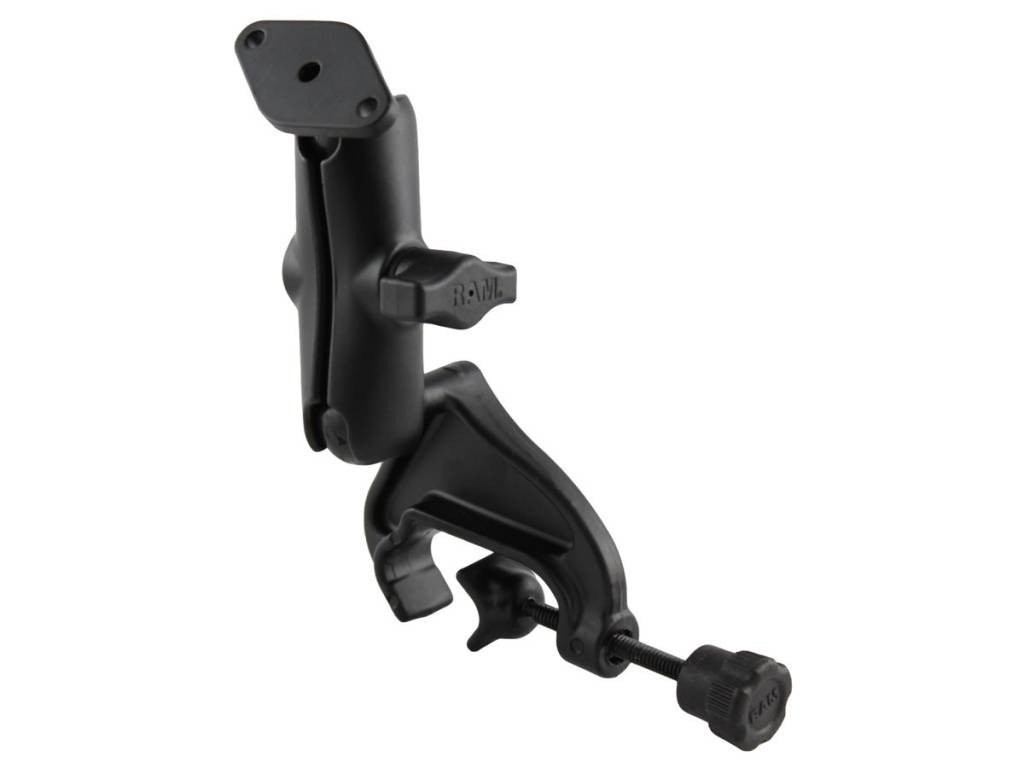

  The RAM-B-121-238U consists of a yoke clamp base, standard length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

  CLAMP RANGE

  .625" - 1.25"

  SOCKET-TO-SOCKET LENGTH

  3"

  HOLE PATTERN

  2-Hole AMPS: 1.912"

  PLATE SIZE

  2.43" x 1.31"

  BALL/SOCKET SIZE

  B Size (1")

  WEIGHT CAPACITY

  Standard Use: 2 lbs
  Heavy-Duty Use: 1 lb

  MATERIALS

  Marine-grade aluminum

  PACKAGING TYPE

  Poly Bag

  WEIGHT

  0.72 lbs.



  COMPONENTS

  RAM-B-121BU

  RAM-B-201U

  RAM-B-238U
