Base Curved Extension with Ball

Base Curved Extension with Ball

• PRODUCT INFORMATION

  OVERVIEW

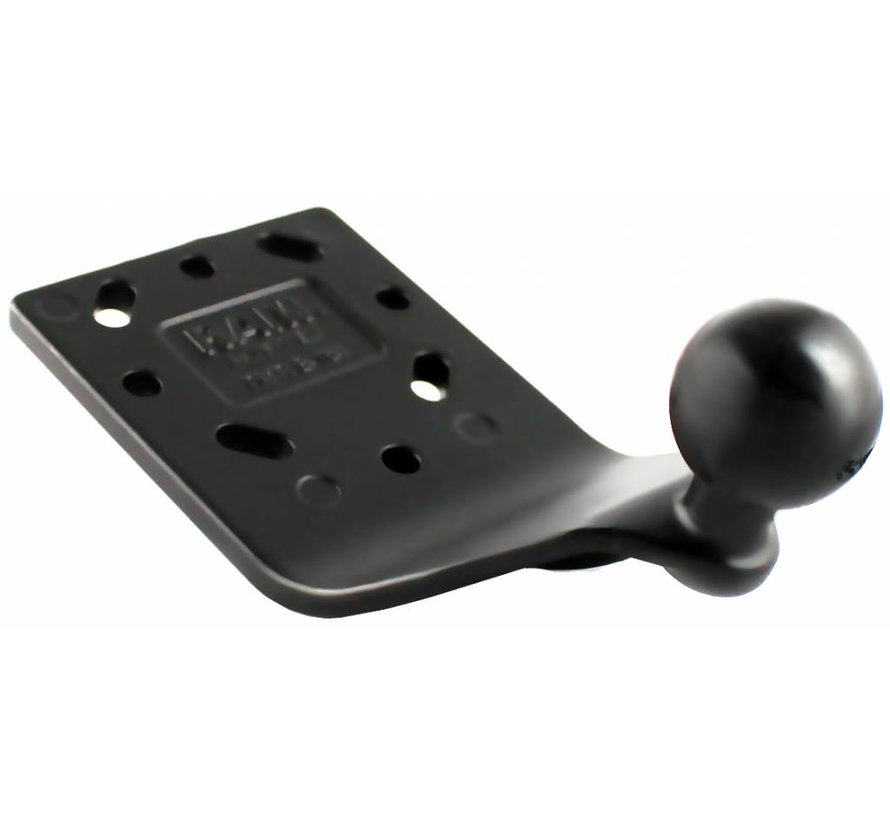

  The RAM RAM-B-125BU, curved extension base includes a 1" rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5'' above the 1" ball (to the bottom of the connection section of the plate).

  HOLE PATTERN

  Various AMPS Hole Patterns
  See Drawing

  BALL/SOCKET SIZE

  B Size (1")

  WEIGHT CAPACITY

  Standard Use: 2 lbs
  Heavy-Duty Use: 1 lb

  MATERIALS

  Marine-grade aluminum

  PACKAGING TYPE

  Poly Bag

  WEIGHT

  0.25 lbs.
